PRODUCT DESCRIPTION
Efficiency and flexibility for your circuit board marking with Cencorp 300 LM
SPECIFICATIONS
WORKSTATION 300 LM
Width(mm) 300
Depth(mm) 620
Height(mm) 650
Weight with laser(kg) 65
Rotary Index table
Working Height(mm) table top
Max. workpiece size(W*D*H) 185*195*80
Max. workpiece weight(kg) 5
Z-axis(mm) (100)
X-axis(mm)
Y-axis(mm)
R-axis(r/min) 60
Power Supply 90-240 V, 50/60 Hz, 1 Ph
Consumption 0.4-1.5 kW
PRODUCT DESCRIPTION

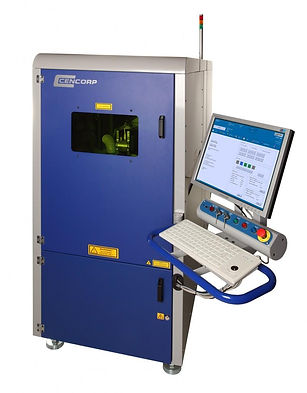

Efficiency and flexibility for your circuit board marking with Cencorp 700 LM
SPECIFICATIONS
Machine Dimensions
-
Width: 750mm (29.5”)
-
Depth: 1841 mm (72,5”)
-
Height: 1640mm (64.5”) without beacon, 1980mm (78.0”) with beacon
-
Weight: 1000kg (2205 lbs)
Board Handling
-
Min PCB size: 50 x 70 mm (L x W)
-
Max PCB size: 516 x 480 mm (L x W)
-
Adjustable conveyor width
-
PCB Thickness: 0.6-4.0 mm
-
PCB transfer time: < 4 s
-
Transfer protocol: SMEMA
-
Transfer height: 900 ±30 mm
-
Bottom clearance: 10 mm
-
Top clearance: 70 mm
-
Edge clearance: 3 mm
Laser unit technical spec.
Standard:
-
Active media: CO2
-
Wavelength: 10600 nm
-
Average power: 30W
-
Scanner area: 105 mm x 105 mm
-
X-Y axis: 516 mm x 480 mm
-
Programmable Z-axis: 70mm
-
Optionally other configurations are available, consult the nearest Cencorp representative.
